EvaKool Heavy Duty Fridge Slide

Small Fridge Slide

• Design: Australian conditions
• Surface: Anti-slip
• Material: Black powder coated steel
• System: Self-locking
• Load Capacity: 80kg
• Slide Length: 1475mm
• Inner Dimensions: L 720mm x W 450mm
• Compatibility: DC42, DU250-DZ, DU265-DZ, DU47-SZ, E060, G50, GFM055, KM55, KM80, RFE40-FF, RFE47-FF, RV38-RR, TMDZ-50, TMDZ-60, TMDZ-70, TMX35, TMX45, TMX50, TMX55.

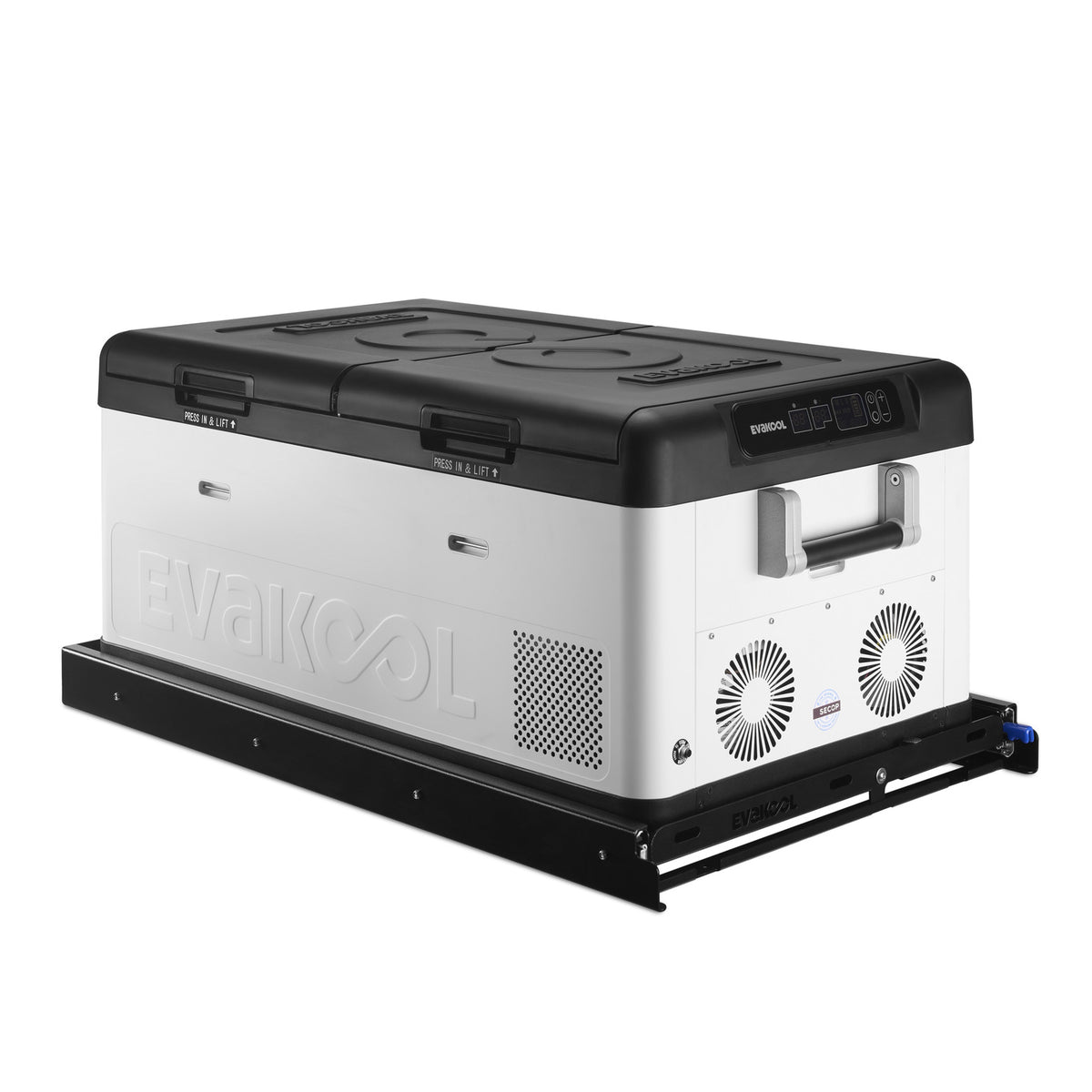

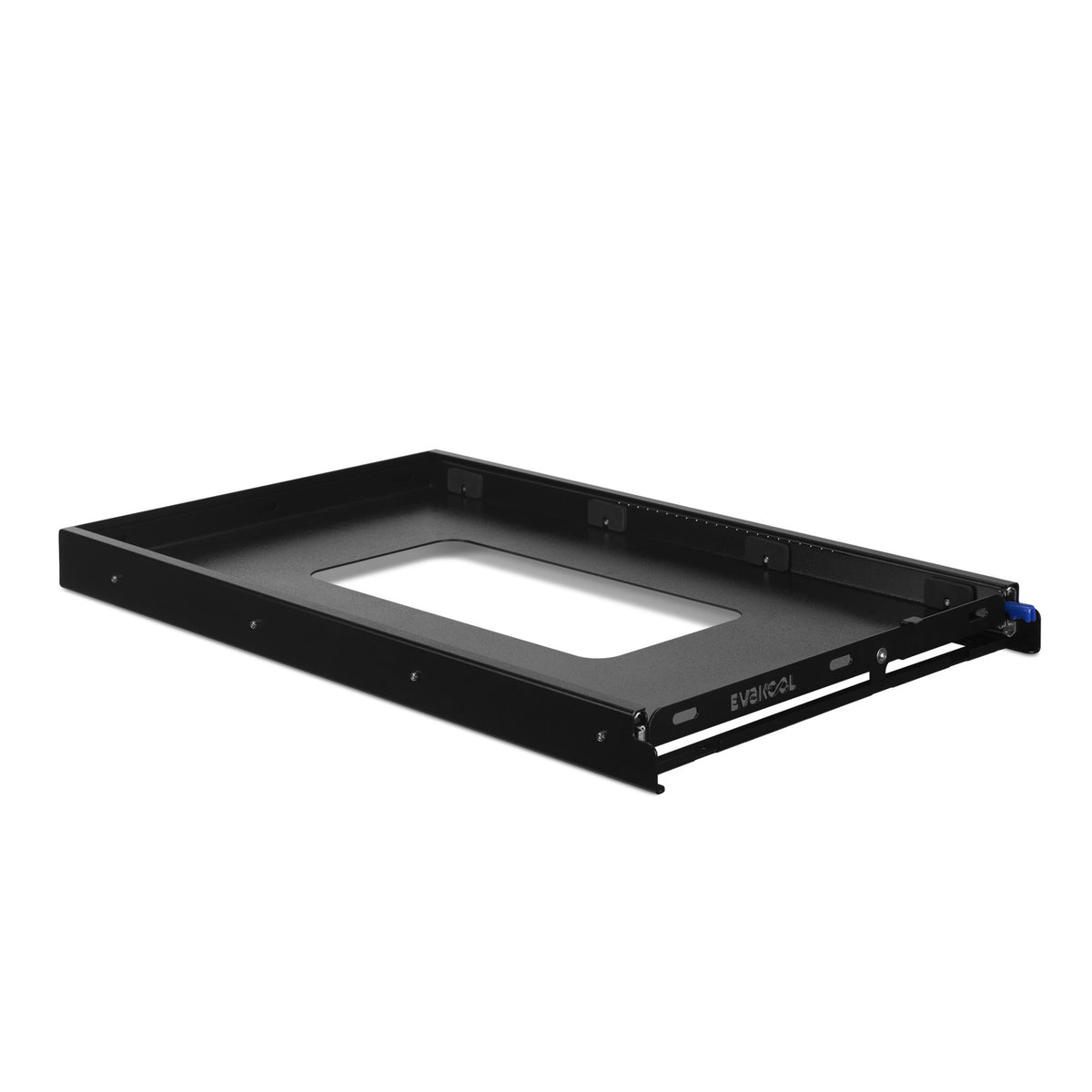

Large Fridge Slide

• Design: Australian conditions
• Surface: Anti-slip
• Material: Black powder coated steel
• System: Self-locking
• Load Capacity: 80kg
• Slide Length: 1855mm
• Inner Dimensions: L 900mm x W 535mm
• Compatibility: B085, B110, B150, DC60, DC62, DU280-DZ, DU295-DZ, DU75-DZ, DU95-DZ, E065, ED65, ED85, G61, G75, GFM070, GFM095, GLX-80-DZ, RFB110-FF, RFB85-FF, RFE60-FF, RFE82-FF, RV62-RR, RV75-RR, TMDZ-80, TMDZ-95, TMX65, XTM75.

These notes ensure that your EvaKool fridge slide integrates seamlessly with your existing setup, reflecting the true Australian spirit of adaptability and resilience.

• Please allow an additional 30mm to your total fridge height when using the fridge slide.
• RFE82-FF features a 170mm overhang due to the motor compartment.
• RFB110-FF features a 75mm overhang due to the motor compartment.
• For RFE82-FF & RFB110-FF, the bung end must be at the front of the fridge slide.
• For TMDZ80 & TMDZ95: If your fridge doesn’t have an Anderson style plug as standard and only has a regular 12V plug, you will need to raise the fridge to accommodate access to the 12V plug.
• The above suggested compatibility is for standard fibreglass builds only.
• Both Large and Small slides have an 80kg load capacity.
